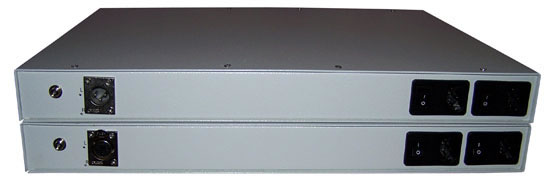

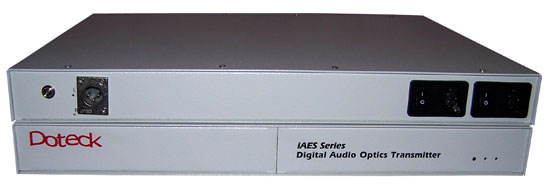

Doteck::i1AES series  1-channel AES/EBU Digital Audio fiber optic Transmission System



Features
tInput/output AES/EBU digital audio
tMany different sampling frequency AES/EBU can be input , it is easy for transmitter and receiver connected with each other
tTransmission distance up to 120 km without relay
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tPCB boards made with environment friendly Pb-free and RoHS Compliant
tConvenient instructions of LED status indicator, audio activity, optical link, power supply etc.

Applications
tRadio Station AES/EBU Signal Transmission
tENG/EFP Serial Digital Audio Transmission
tTape Deck to Digital Audio Tape Transmission
tPre-production and Post-production Serial Digital Audio Links

Brief Introduction
tDoteck i1AES series is high performance AES/EBU digital audio fiber optic transmission system. Input 1-channel AES/EBU digital audio. Output 1-channel AES/EBU digital audio.
tDoteck i1AES series accepts 44.1 or 48 kHz sampling frequency and many versions of optical transmitter and receiver combinations are available to address different distance requirements.
tDue to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

Technical Specifications

AES/EBU Audio Input
Standard AES/EBU under AES3-1992(ANSI S4.40-1992, IEC 958)
Channel Capacity 1
Level 0.2-7.0Vp-p
Sampling Frequency 32KHz-108KHz
Impedance 110Ω(balance),or 75Ω(unbalance)
Connector XLR(balance),BNC(unbalance)

AES/EBU Audio Output
Channel Capacity 1
Level 5Vp-p
Sampling Frequency 48KHz
Jitter <0.005UIp-p
Rise/Fall Time <25ns
Impedance 110Ω(balance)
Connector XLR(balance)

Physical
Dimension(HxWxD) 43×430×230（mm）
Power Supply 130 - 255VAC,50-60Hz
Operating Temperature 0 - +50 ℃
Humidity 0 - 95% RH, non-condensing
LED Status Indicator Power, Optical Link, Audio Activity

Optical
Fiber Type Single mode or Multimode
Number of fiber 1
Wavelength 1310nm and/or 1550nm
Fiber Optic Connector FC/PC
Transmission Distance 0-120km
