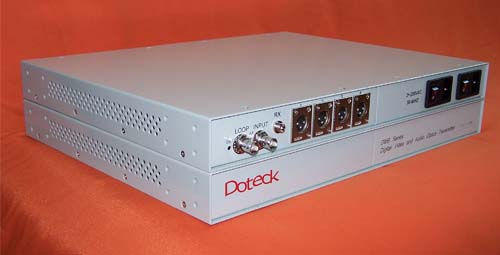

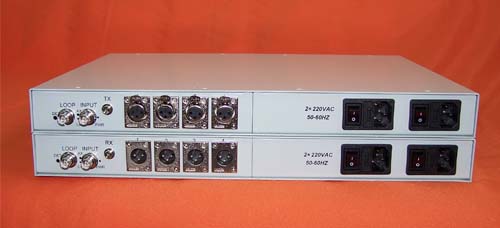

Doteck::DMA series Analog video input/SDI digital video output (embedded/deembedded analog audio or/and AES/EBU digital audio)
Features
CVBS,YC,YUV,SDI can be chose
Up to 4 channel analog audio,2 channel AES/EBU digital audio embedded/deembedded SDI
Width video AGC, input video power 0.6V-1.6V,perfect digital clamping, and low level signal can be supported
Transmission distance up to 120 km without relay
1310 nm,1550 nm, CWDM or DWDM optic transmission mode can be chose, can be multi-channel transmitted with optical
support NTSC(525/60),or PAL(625/50) standard(auto sense)
Applications
Multimedia Studio
Broadcast video / audio equipment Link
Video Conference
Media Retrieval and Distribution
Introdution
Doteck DMA serial video/audio digital optic transmitter，output video signal can be CVBS、YUV or half of YC，also can be SDI digital video；input audio signal can be analog audio or digital audio AES/EBU，output system support the DVB SDI digital video signal.
When the input video signal for CVBS, YUV, YC,DMA can meet user high-quality transmission of analog video and audio signal, digital audio signal requirements, It also can input analog signal and output digital signal. When the input video signal for digital SDI video, DMA can meet user high-quality transmission of digital video and audio signals, analog audio signal requirements, It also can input digital signal and output analog signal.
Input analog video signal A/D converted into digital SDI signal, input analog audio signal A/D converted into digital signals, AES/EBU both audio signals are then embedded into the SDI digital video signal.
Transmitter
Analog Audio Input
Channel Capacity
4
Max Input Level
17.4VP-P (+18dBm) or need
Frequence Width
20Hz—20 KHz
Impedance
600Ω
Connector
XLR
Digital Audio AES/EBU Input
Channel Capacity
2
Input Level
0.2 - 7.0Vp-p
Sample Frequence
32KHZ–108KHZ (20/24bit)
Impedance
110Ω
Connector
Balance link pin
Analog Video Input
Input Signal
CVBS,YS,YUV can be chose
Input Level
0.6 – 1.6Vp-p
Impedance
75Ω
Connector
BNC
SDI Digital Video Input
Input Signal Standard
4:2:2 SMPTE259M(270Mbps)
Input Level
800mVp-p±10%
Max Jitter
< 0.2UI(270Mbps)
Rise/Fall Time
< 0.8nS
Impedance
75Ω
Connector
BNC
Optic
Wavelength
1310nm or 1550nm or etc
Transmission Power
-12dBm～3dBm SMPTE297M
Transmission Distance
0-50km or need
Connector
FC/PC or need
Number of RS232 Channel
2 channels <10kbit/s
Power
AC220V <20W
Dimension
19 inch 1U box 430x230x43
Receiver
Analog Audio Output
Channel Capacity
4
Operating Mode
Balance/Unbalance
Max output Level
17.4Vp-p@+18dBm
Frequence response
20HZ-20KHZ@-0.5dB
THD
<0.2%
Impedance
Low
Connector
TB or XLR
Digital Audio（AES/EBU）Output
Channel Capacity
2
Output Level
5Vp-p
Signal Resolution
20bits，or 24bits
Sample Frequence
48KHZ
Data Jitter
<±20ns
Impedance
110Ω
Connector
TB or XLR
SDI Digital Video Output
Channel Capacity
2
Output Signal Standard
4:2:2 SMPTE259M(270Mbps)
Output Level
800mVp-p±10%
Max Jitter
<0.2UI(270Mbps)
Rise/Fall Time
<0.8ns
Impedance
75Ω
Connector
BNC
Physical
Dimension
44×440×300（mm）
Power
95～240VAC @ 0.6A
Operating Temperature
0～+50 ℃
Humidity
0～95% RH,non-condensing
Status Indicators
Power,optic link, Video, audio, data operating status
